Products

Thermo Scientific Niton XL2 analyzers provide you with many distinct advantages:

The Niton XL2 stands far above the competition, with its many standard features and available options. By utilizing the standard Thermo Scientific Niton Data Transfer (NDT©) PC software suite to customize the instrument, you can set operator permissions, generate custom reports, print certificates of analysis personalized with your own company logo, or remotely monitor and operate the instrument hands-free from your PC. Integrated USB and Bluetooth® communications provide direct data transfer to your PC or networked storage device, eliminating the cumbersome data synchronization procedures required by Windows Mobile®-based XRF analyzers.

Niton XL2 Analyzers
Whether you need an analyzer for metal alloy analysis, mining operations, or electronics and consumer goods screening, the valuechoice Niton XL2 provides cost-effective high-speed performance, point-and-shoot simplicity, and the cutting-edge technology that you have come to expect from industry-leading Thermo Scientific Niton XRF analyzers.

Thermo Scientific Niton XL2 Specifications

  • ➤ Weight
  • ➤ Dimensions
  • ➤ Tube
  • ➤ Detector
  • ➤ System Electronics
  •
  •
  •
  •
  •
  • ➤ Display
  • ➤ Standard Analytical Range
  •
  • ➤ Data Storage
  • ➤ Data Transfer
  •
  • ➤ Security
  • ➤ Mode
    (Varies by application)
  •
  •
  •
  •
  • ➤ Data Entry
  •
  •
  • ➤ Standard Accessories
  •
  •
  •
  •
  •
  •
  •
  •
  • ➤ Optional Features and Accessories
  •
  •
  •
  •
  •
  •
  • ➤ Licensing/Registration
  • ➤ Compliance
  • :3 lbs 5.8 oz (1.53 kg)
  • :10.25 x 11 x 4 in. (256 x 275 x 100 mm)
  • :Ag anode 45 kV maximum, 80 uA maximum
  • :High-performance semiconductor
  • :400 MHz ARM 11 CPU
  • :300 MHz dedicated DSP
  • :80 MHz ASICS DSP for signal processing
  • :4096 channel MCA
  • :64 MB internal system memory/128 MB internal user storage
  • :Fixed angle, color, touch-screen display
  • :>25 elements from S to U (varies by application)
  • :Internal >10,000 readings with spectra
  • :USB, Bluetooth™, and RS-232 serial communication
  • :Password-protected user security
  • : Alloy Modes: Metal Alloy, Electronics Alloy, Precious Metals
  • : Bulk Modes: Mining, Soil
    Plastic Modes: RoHS Plastics, Toy & Consumer Goods Plastics
    TestAll™, Painted Products
  • :Touch-screen keyboard
    User-programmable pick lists
    Optional wireless remote barcode reader
  • :Integrated camera
    Locking shielded carrying case
    Shielded belt holster
    Two 6-cell lithium-ion battery packs
    110/220 VAC battery charger/ AC adaptor
    PC connection cables (USB and RS-232)
    Niton Data Transfer (NDT) PC software
    Safety lanyard
    Check samples/standards
  • :Engine Guard protects critical detection components and minimizes operational downtime
    Thermo Scientific portable test stand, stationary (bench-top)
    stand, mobile test stand
    Welding mask
    Soil testing guard
  • :Varies by region. Contact your local distributor.
  • :CE, RoHS

LIBS technology for non-scientists

Laser induced breakdown spectroscopy

The air intakes of inside combustion motors and air blowers will in general utilize either paper, froth, or cotton filters. Oil shower channels have become undesirable beside specialty employments. The innovation of air intake filters of gas turbines has improved fundamentally lately, because of upgrades in the streamlined features and liquid elements of the air-blower part of the gas turbines.

An oil shower air cleaner comprises of a sump containing a pool of oil, and a supplement which is loaded up with fiber, work, froth, or another coarse channel media. The cleaner eliminates particles by clinging them to the oil-drenched channel media as opposed to customary filtration, the openings in the channel media are a lot bigger than the particles that are to be sifted. At the point when the cleaner is gathered, the media-containing body of the supplement sits a short separation over the outside of the oil pool.

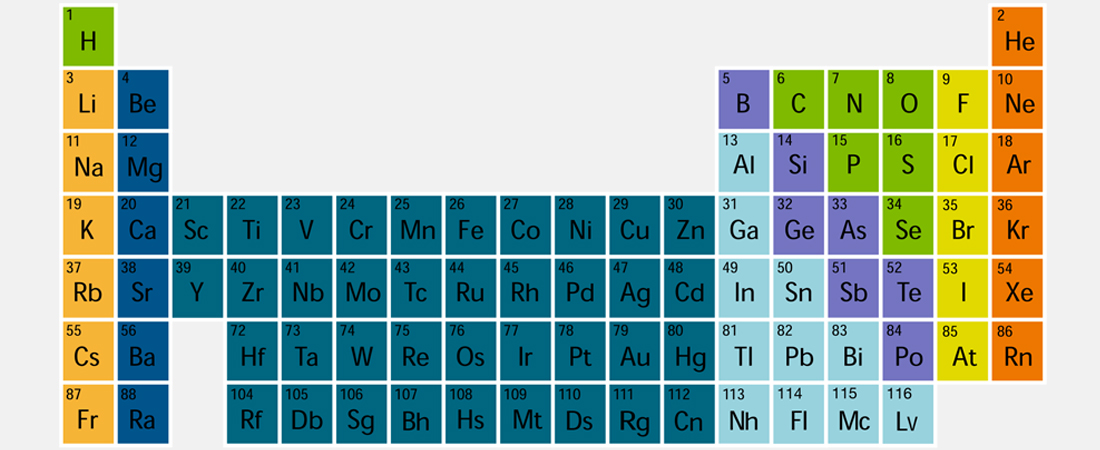

Chemical elements are a species of atoms, where all atoms contain the same number of protons in the nucleus. This is a substance that cannot be broken down into any simpler substance and still retain the nature of the element.
The elements are arranged in increasing order of their number of protons and electrons.
